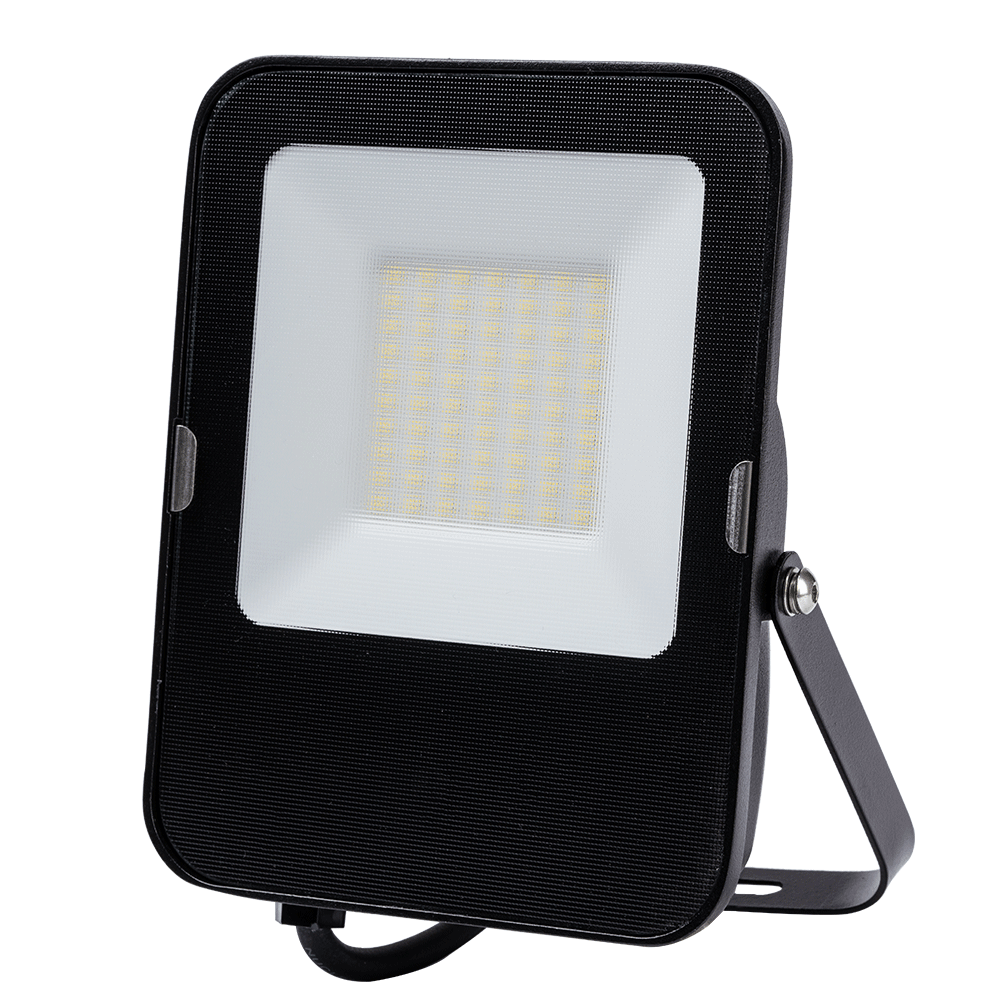

MX01V Series

LED Flood Lights

Features

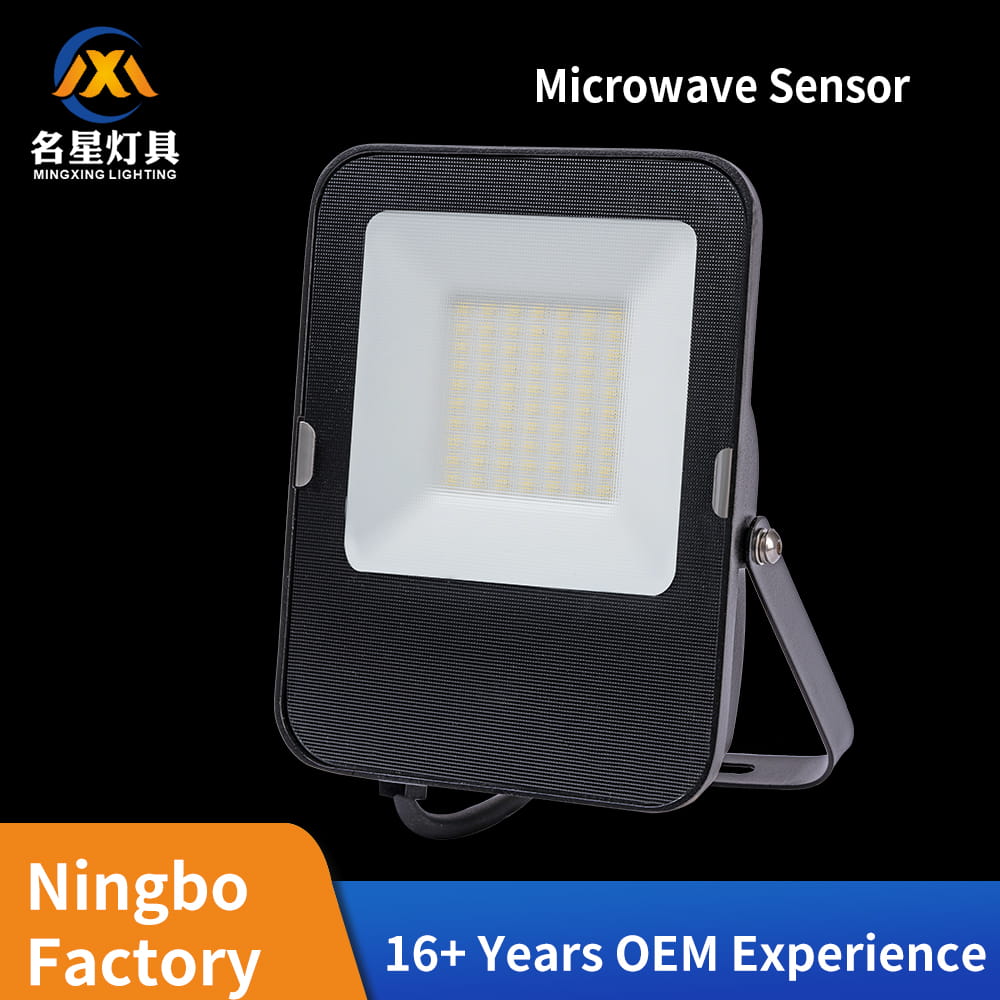

  • Microwave sensor optional,12m detective distance
  • Thick housing, ribbed back, perfect heat  dissipation, maintenance-free
  • H05RN-F 3*1.0mm² 15CM prewired cable
  • TOP brand LEDs and electronic components, reliable quality
  • 4mm fully tempered safety glass
  • Patent design: extra metal clips to fasten glass, more secure
  • Stainless steel screws
  • Up to 50W,100-120LM/W

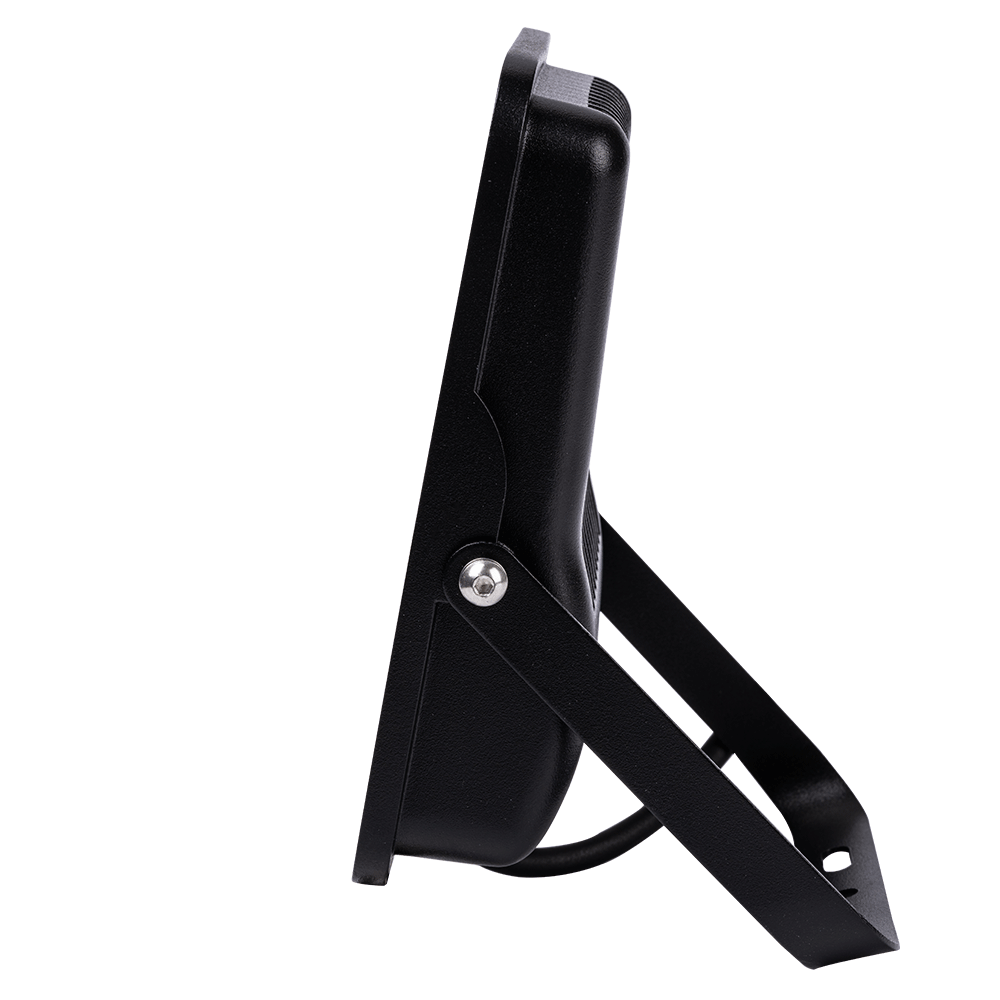

  • 180° rotatable bracket for flexible beam angle
  • Sensor/RGB/CCT tunable optional,12V/24V and 36V optional
  • SGS CE RoHS certificated
  • MOQ: 500pcs
  • Payment: T/T, L/C
  • Delivery time: 25-35 days
  • FOB port: Ningbo,China
  • Manufacturer: Ningbo Mingxing Lighting
GET A QUOTE

PRODUCT INTRODUCTION

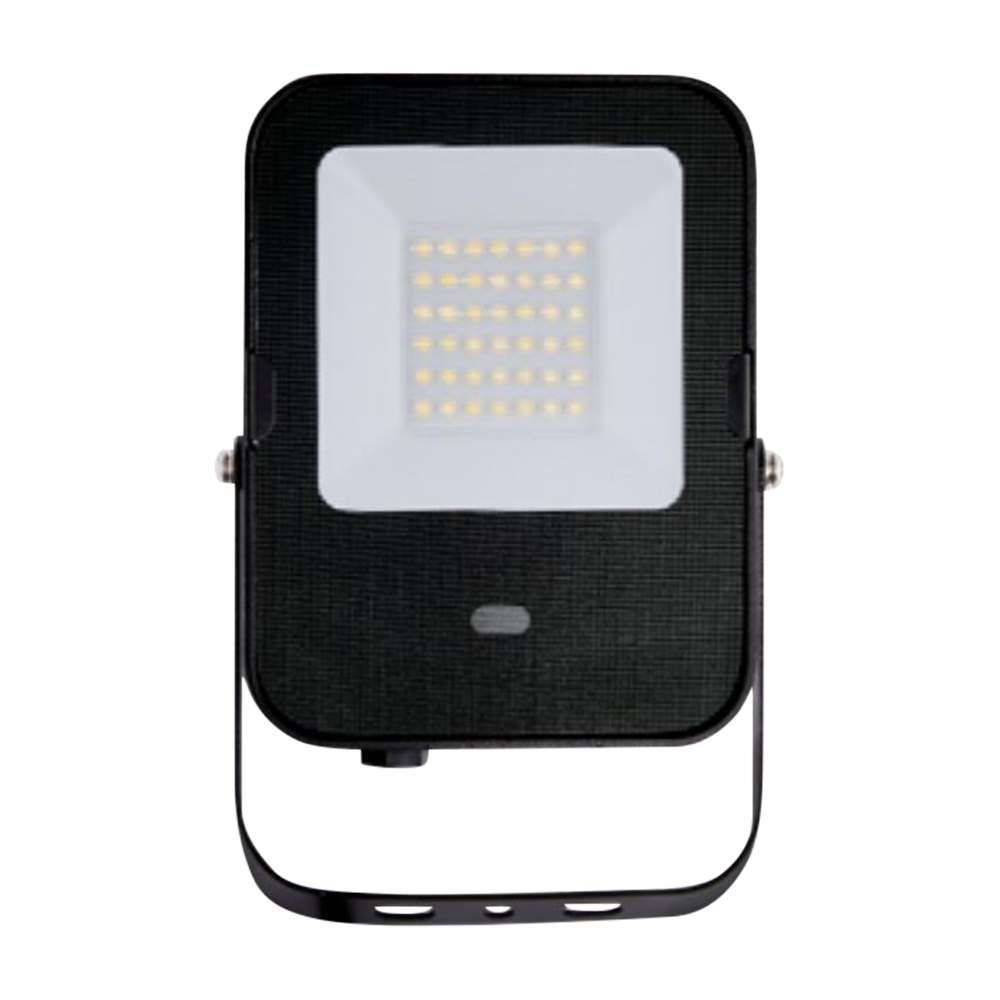

The MX01V series LED floodlight is a high-quality lamp with built-in microwave induction. It uses ADC-12 die-cast aluminum with excellent heat dissipation performance as the shell material, fully tempered glass, and international first-line brand LED lamp beads and drivers. It can provide up to 50,000 Hours of service life, while light decay is <20%. Compared with infrared sensing, microwave sensing has the characteristics of longer sensing distance, more sensitivity, and more applicable scenarios. Ningbo Mingxing Lighting Co., Ltd., as an LED lighting manufacturer with more than 16 years of experience, can provide you with the best quality products and services. Please feel free to contact us at any time.

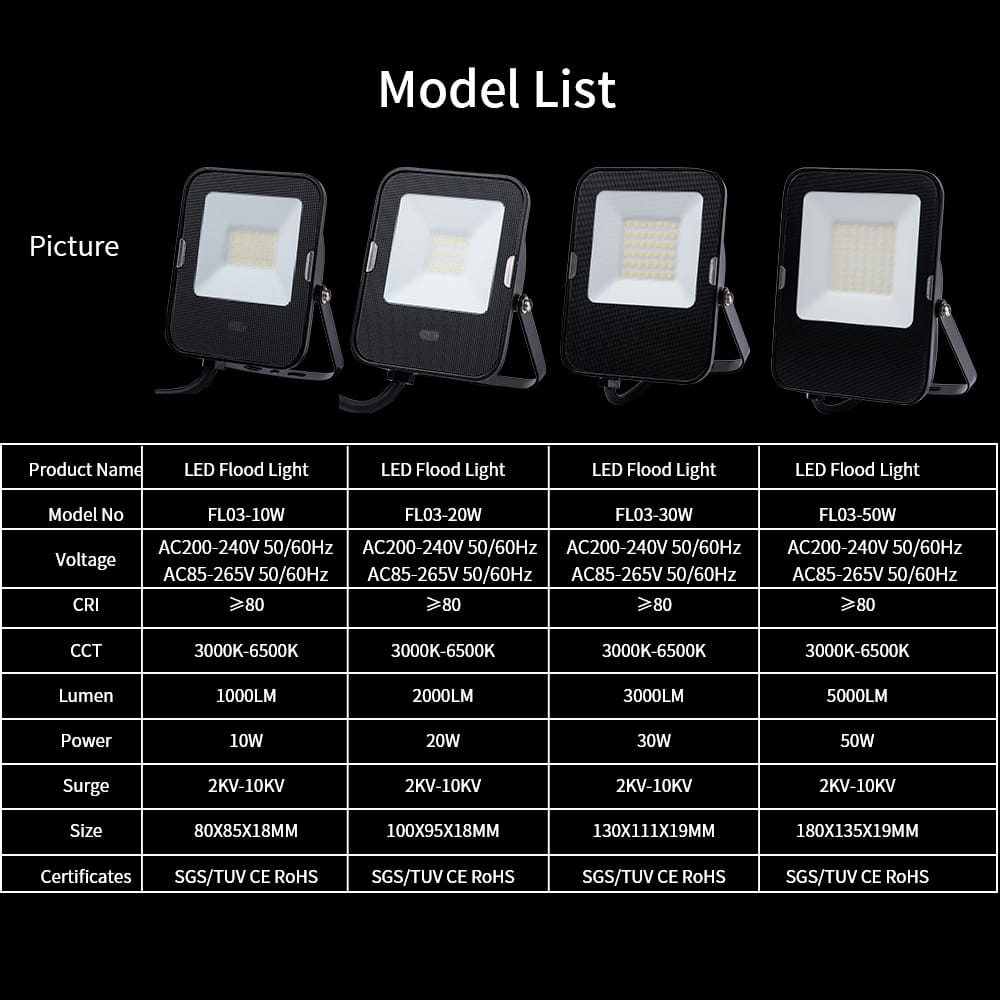

Technical Parameters

Ordering
Code		 Wattage Real Voltage PF LED LM Color Temperature CRI Beam Angle Lifetime Surge Dimension Prewired cable Guarantee
W W V K ° h mm years
MX01V-20W
MW sensor		 10 10 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 1000 3000K-6500K >80 120° 30000 2KV-10KV 94*117*36 H05RN-F 3*1.0mm² 15CM 3-5
MX01V-20W
MW sensor		 20 20 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 2000 3000K-6500K >80 120° 30000 2KV-10KV 94*117*36 H05RN-F 3*1.0mm² 15CM 3-5
MX01V-30W
MW sensor		 30 30 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 3000 3000K-6500K >80 120° 30000 2KV-10KV 107*141*38 H05RN-F 3*1.0mm² 15CM 3-5
MX01V-50W
MW sensor		 50 50 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 5000 3000K-6500K >80 120° 30000 2KV-10KV 135*175*42 H05RN-F 3*1.0mm² 15CM 3-5
MX01-10W
NO sensor		 10 10 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 1000 3000K-6500K >80 120° 30000 2KV-10KV 94*117*36 H05RN-F 3*1.0mm² 15CM 3-5
MX01-20W
NO sensor		 20 20 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 2000 3000K-6500K >80 120° 30000 2KV-10KV 94*117*36 H05RN-F 3*1.0mm² 15CM 3-5
MX01-30W
NO sensor		 30 30 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 3000 3000K-6500K >80 120° 30000 2KV-10KV 107*141*38 H05RN-F 3*1.0mm² 15CM 3-5
MX01-50W
NO sensor		 50 50 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 5000 3000K-6500K >80 120° 30000 2KV-10KV 135*175*42 H05RN-F 3*1.0mm² 15CM 3-5

Product Details

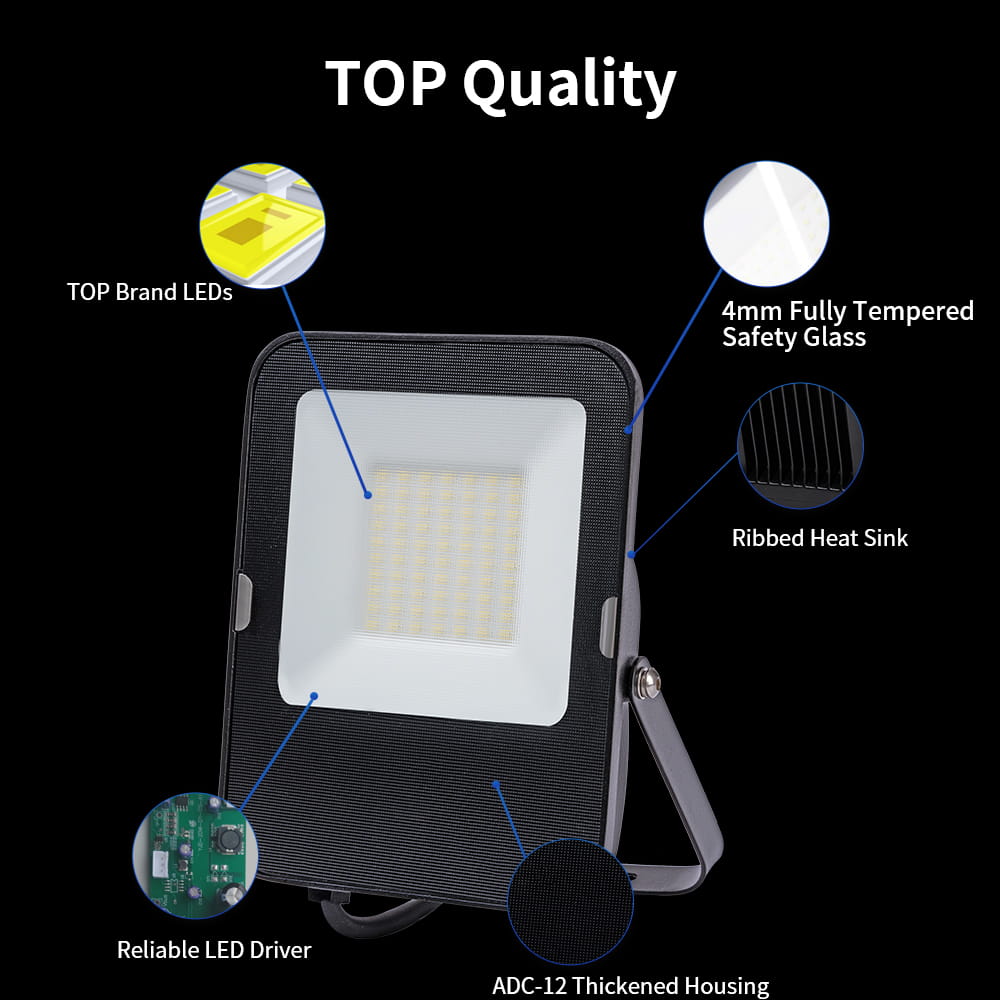

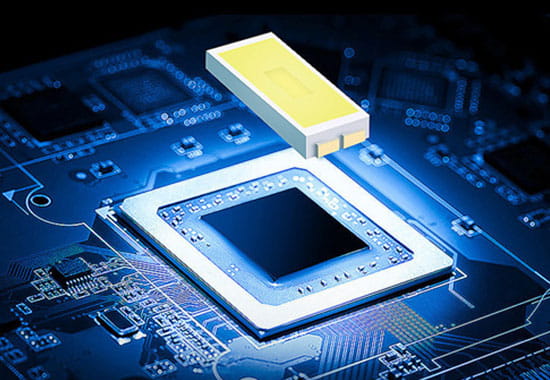

  • Equipped with CREE/SAMSUNG/SAN AN LM-80 SMD LED,our LED flood lights can reach 85-160LM/W with CRI≥80 or 90,SDCM≤6 or 3,L80: 30K or 50K hours.

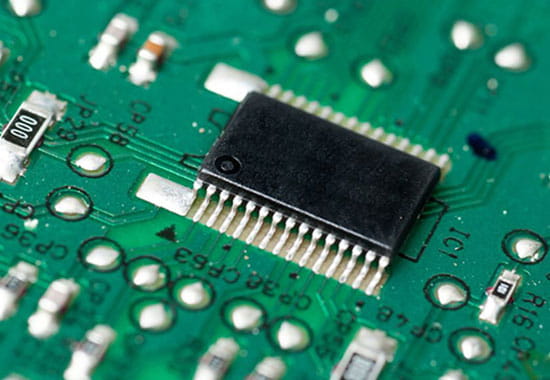

  • With the reliable driver, our LED flood lights meet international quality standards, such as CE UKCA GS ENEC CB SASO.

  • Quality is always our top priority. With 2KV-10KV surge protection,our LED flood lights are more secure.

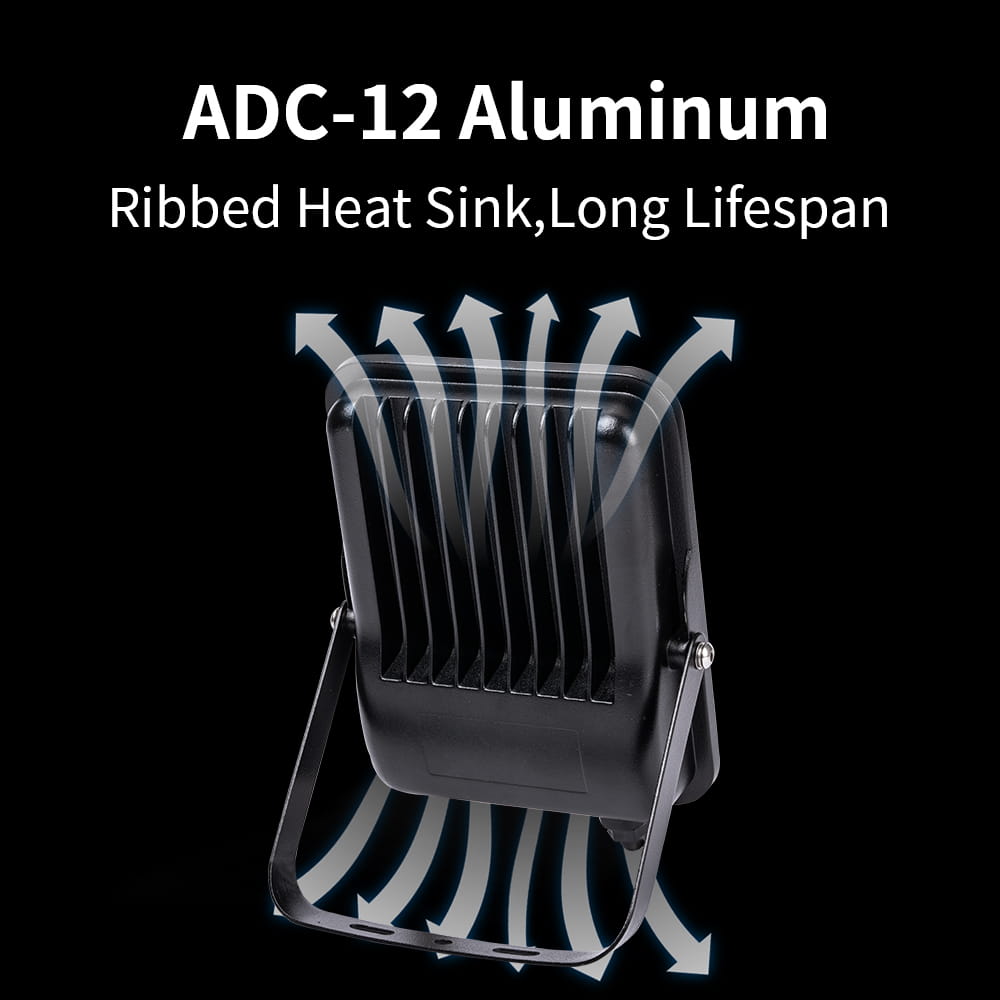

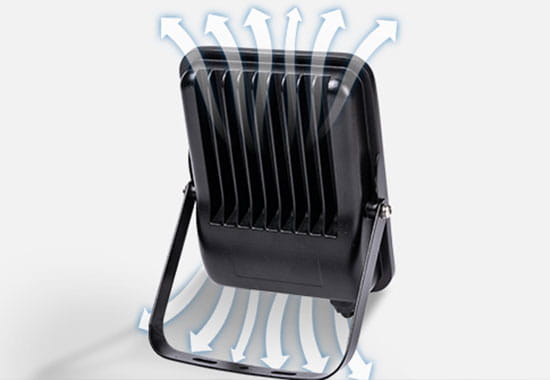

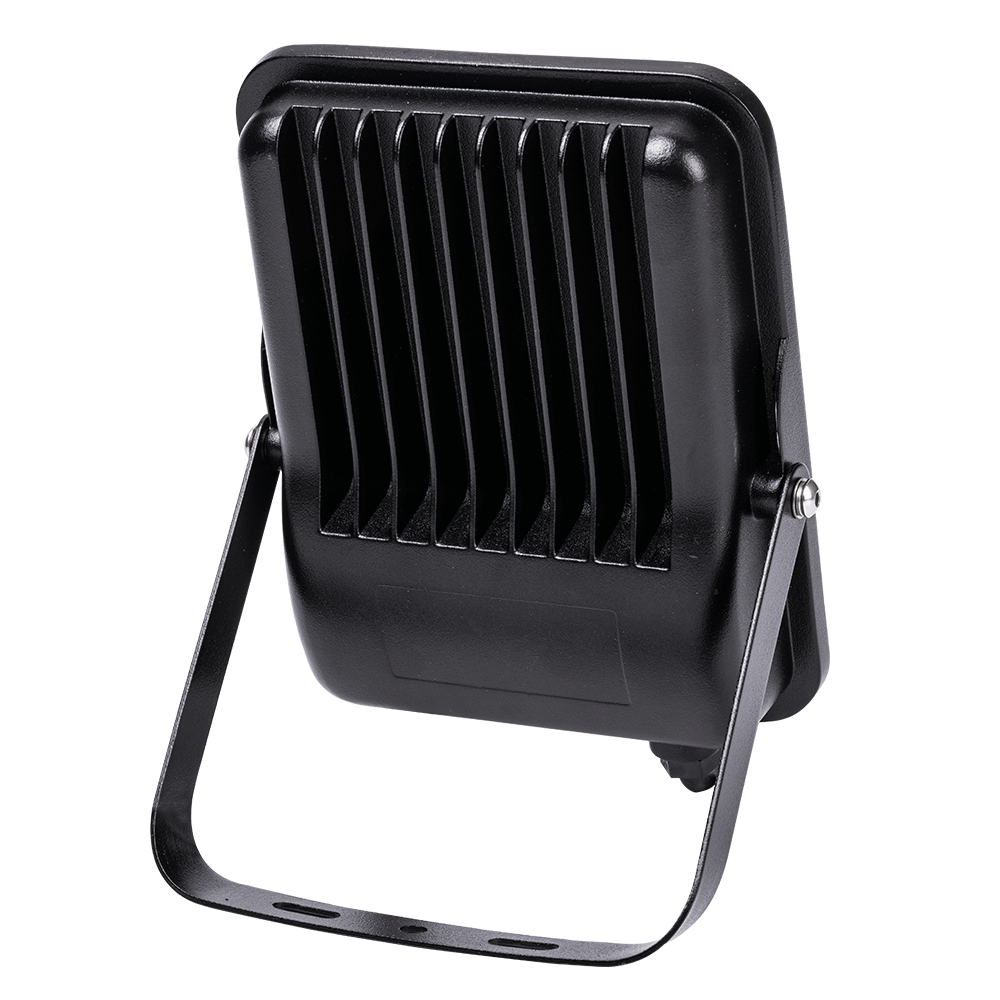

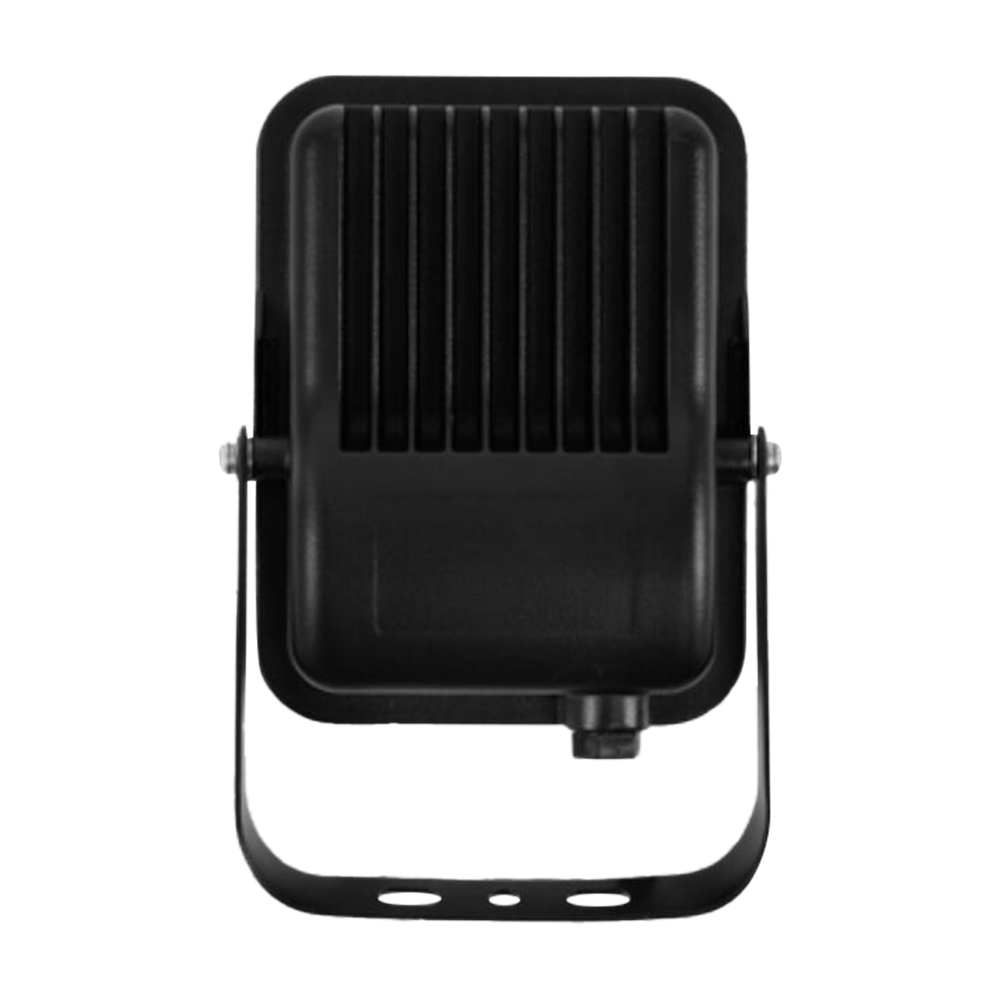

  • ADC-12 aluminum housing with ribbed back ensures good heat sink and longer lifespan.

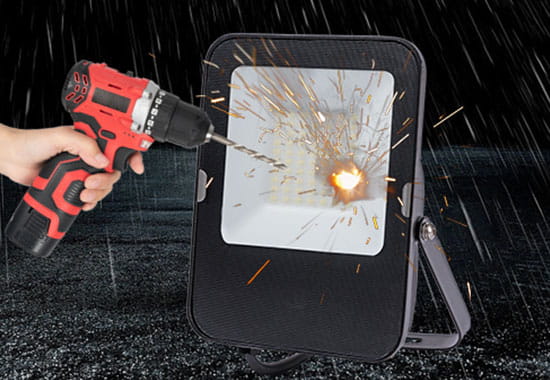

  • 4mm thickness fully tempered glass,IK06,more secure than 3mm semi-tempered from other manufacturers.

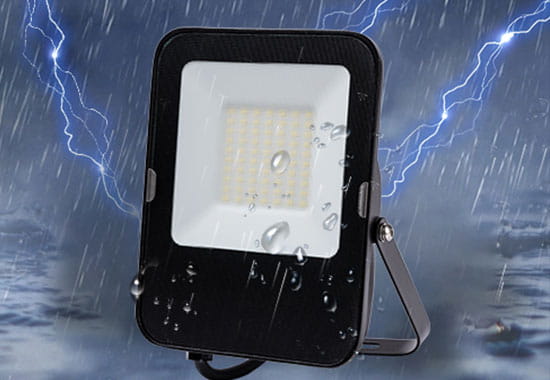

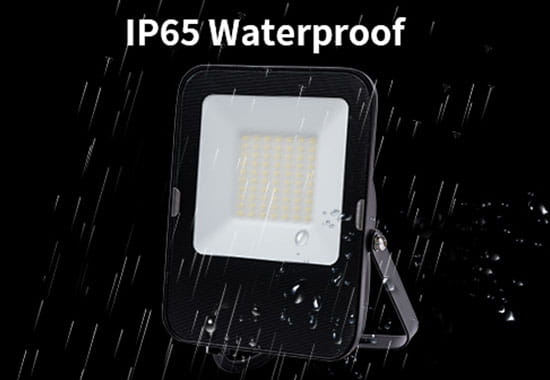

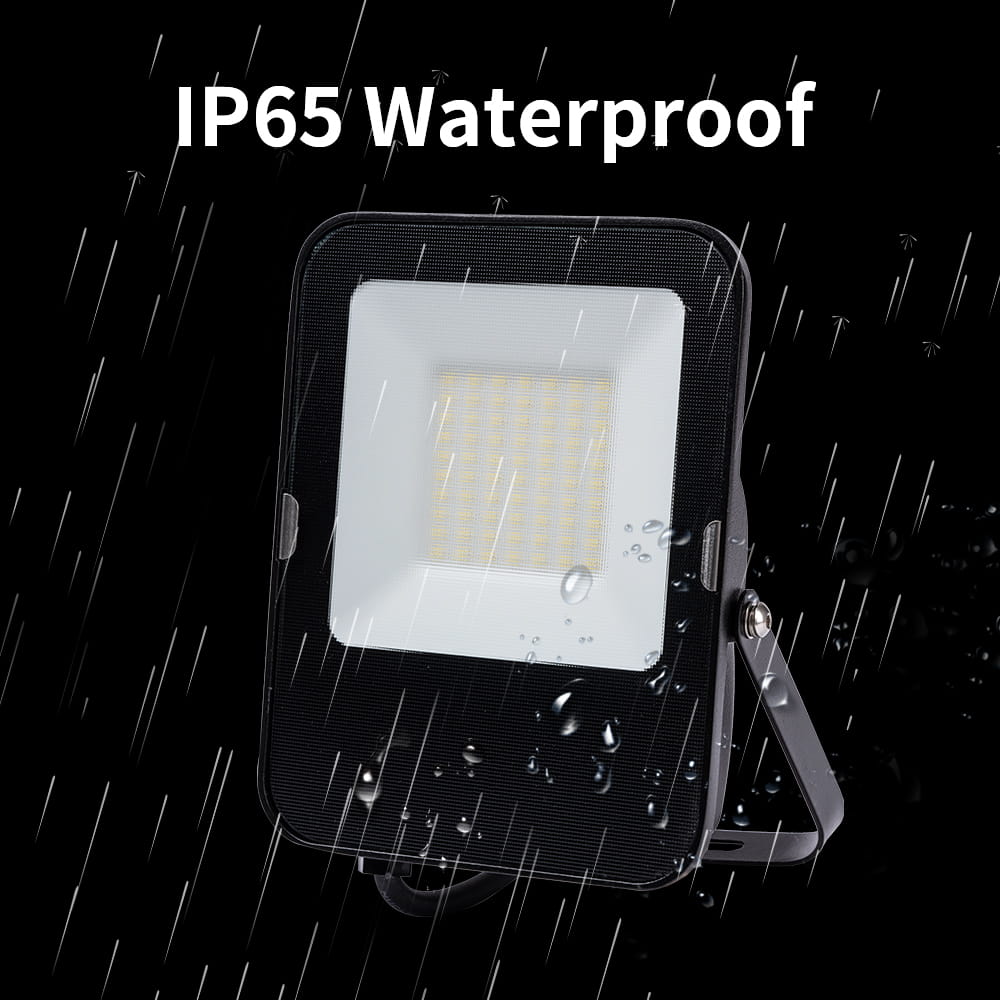

  • IP65 waterproof grade, excellent for outdoor using.

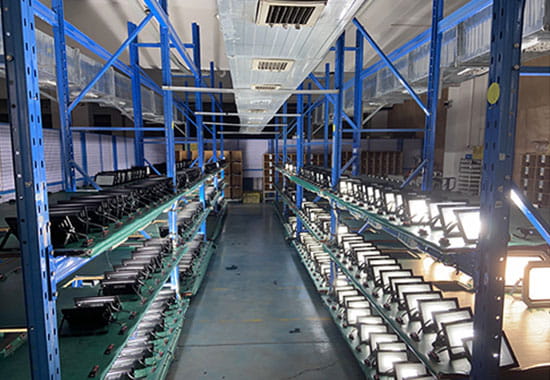

  • 100% aging test for each order.

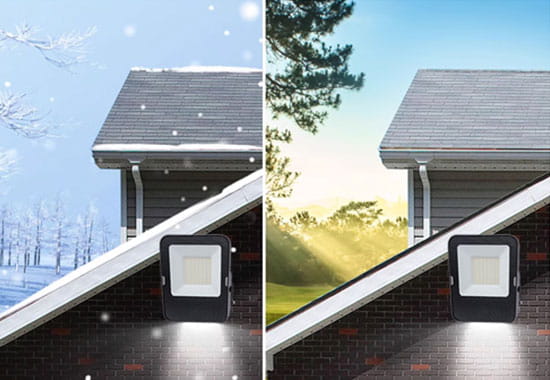

  • No matter it is -40℃ or +65℃, our LED flood lights always work well.

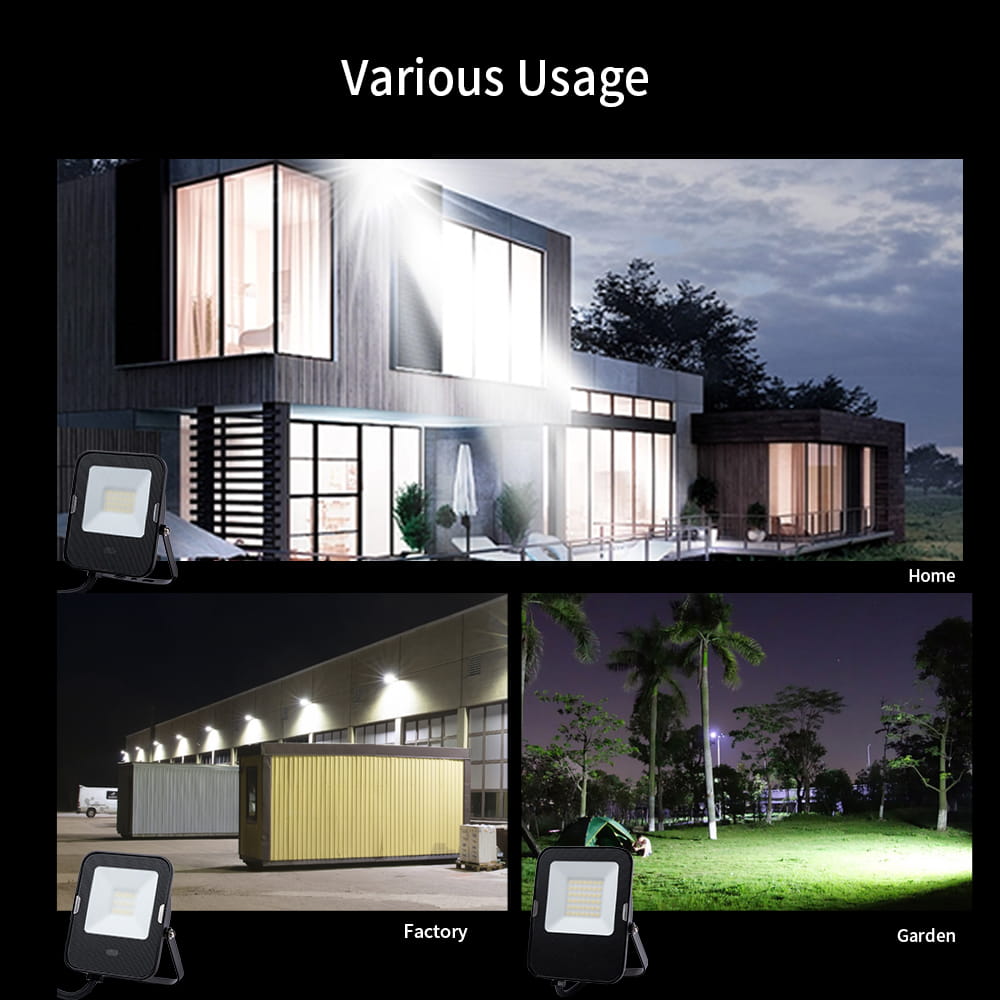

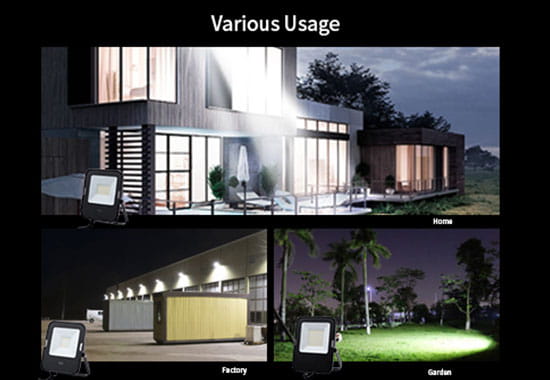

  • Various usage, good performance, and long lifespan.

Certificate

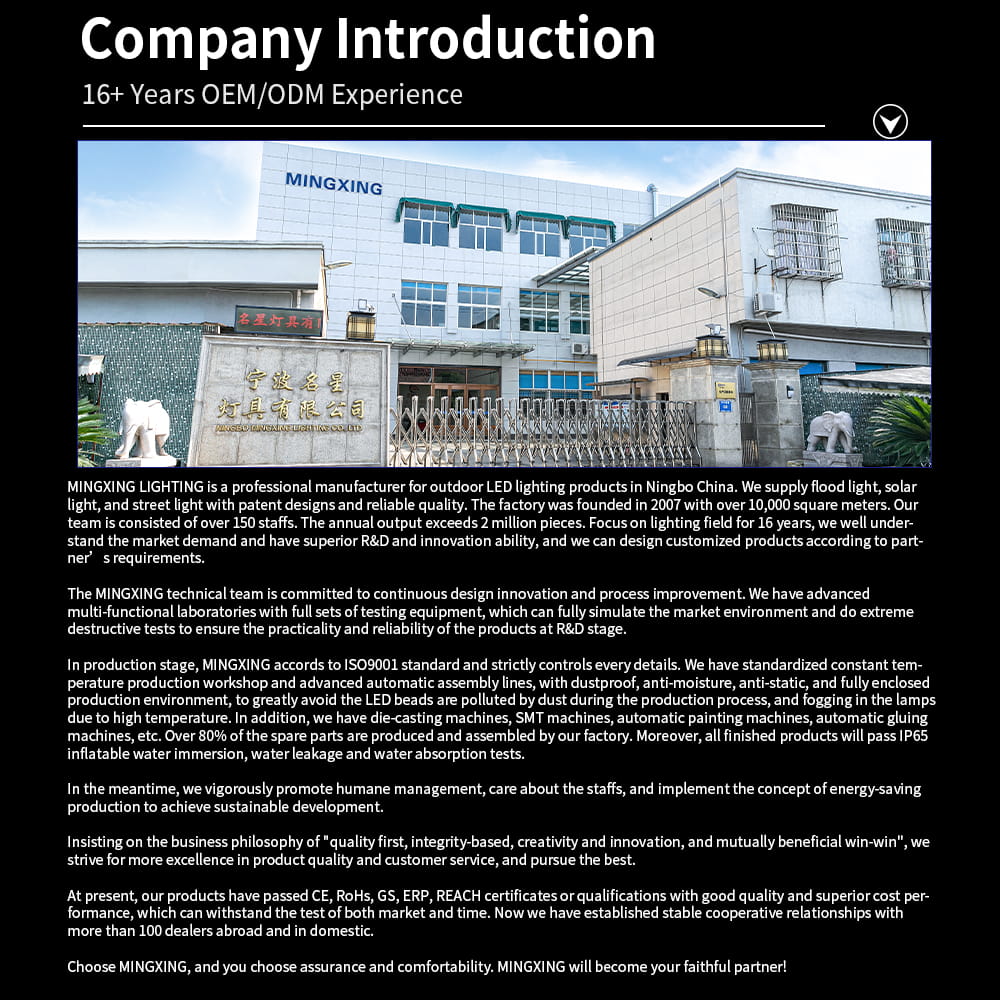

We supply flood light, solar light, and street lamp with patent design and reliable quality. The factory was founded in 2007 with over 10,000 square meters. Our team is consisted of over 200 staffs. The annual output exceeds 2 million pcs. Deeply involved in the lighting field for many years, we well understand the market demand and have superior R&D and innovation ability, and we can design customized products according to partner’s requirements.

  • 2007

    Founded in

  • 10,000+

    Company area

  • 200+

    Staff

  • 2,000,000+

    Annual output

Frequently Asked Questions

  • How Can I Get a Quote For The Lights?

    Get in touch with our customer service team to get a quote. They are available 24/7. Just be ready with your specifications like size, color temperature, wattages, etc. Give us your BOQ, and we’ll guide you through the rest of the process.

  • What is Your MOQ For The Order?

    Our MOQ is 500pcs for each item.

  • Can I Get a Sample Before Place The Order?

    Yes, we will provide you with a sample that you can physically evaluate. This will take 3 to 7 business days to complete. Custom orders may take longer.

  • What Is The Delivery Time of My Order?

    Our usual delivery time for LED flood lights is 25 to 35 days. The shipping period isn’t included, so consider that when setting your deadline expectations.

  • Can You Make Customized LED Flood Lights?

    Yes, we can customize LED Flood Lights for you. We need you to give us specific details like your design preference, power input, beam angles, wattage, etc. If you need further direction, our customer service can help you throughout the process.

  • What Is Your Warranty For Your LED Flood Lights?

    Quality is vital in everything that we do. This is why we are confident enough to provide our LED Flood Lights with a 3- or 5-year warranty. You can ensure that we only use high-quality materials and that every product is 100% tested before delivering to your specified location.
