Home / Products / LED Light / LED Flood Lights / 20 Series

20 Series

LED Flood Lights

Features
  • Original unique design, ultra-thick, heavy-duty
  • Terminal at back for wiring or CCT tunable
  • ADC-12 aluminum housing, ribbed back, perfect heat  dissipation, maintenance-free
  • H05RN-F 3*1.0mm² 15CM prewired cable
  • TOP brand LEDs and electronic components, reliable quality
  • 4mm fully tempered safety glass, IK06 impact
  • Stainless steel screws
  • Power range:10W-200W,70-120LM/W
  • With valve respirator from 100W to 200W
  • IP65 waterproof
  • Sensor/RGB/CCT tunable optional,12V/24V and 36V optional
  • 2KV-10KV surge protection.
  • SGS CE RoHS certificated
  • MOQ: 500pcs
  • Payment: T/T, L/C
  • Delivery time: 25-35 days
  • FOB port: Ningbo, China
  • Manufacturer: Ningbo Mingxing Lighting
GET A QUOTE

PRODUCT INTRODUCTION

The MX20 series LED floodlight is an originally designed high-quality lamp. It uses ADC-12 die-cast aluminum with excellent heat dissipation performance as the shell material, fully tempered glass, and international first-line brand LEDs and drivers. It can provide as long as 50,000 hours service life, while light decay is <20%. The ultra-thick shell makes it extremely durable and adaptable to various harsh scenarios. The terminal block at its back also provides customers with more wiring methods. At the same time, it can also have rich customized functions, such as Sensor/RGB/CCT tunable /12V/24V /36V input. As an LED lighting manufacturer with more than 16 years of experience, Ningbo Mingxing Lighting Co., Ltd. can provide you with The best quality products and services, Please feel free to contact us.

Technical Parameters

Ordering
Code		 Wattage Voltage PF LED LM Color Temperature CRI Beam Angle Lifetime Surge Dimension Prewired cable Guarantee pcs/ctn
W V K ° h mm years
MX20-10W 10 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 1000 3000K-6500K >80 120° 30000 2KV-10KV 97*115*33 Use terminal at back 3 60
MX20-20W 20 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 2000 3000K-6500K >80 120° 30000 2KV-10KV 97*115*33 Use terminal at back 3 40
MX20-30W 30 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 3000 3000K-6500K >80 120° 30000 2KV-10KV 114*139*38 Use terminal at back 3 40
MX20-50W 50 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 5000 3000K-6500K >80 120° 30000 2KV-10KV 144*179*43 Use terminal at back 3 20
MX20-100W 100 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 10000 3000K-6500K >80 120° 30000 2KV-10KV 230*290*55 Use terminal at back 3 8
MX20-150W 150 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 15000 3000K-6500K >80 120° 30000 2KV-10KV 262*330*64 Use terminal at back 3 6
MX20-200W 200 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 0.9 SMD2835 20000 3000K-6500K >80 120° 30000 2KV-10KV 288*365*65 Use terminal at back 3 4

Product Details

  • Equipped with CREE/SAMSUNG/SAN AN LM-80 SMD LED, our LED flood lights can reach 85-160LM/W with CRI≥80 or 90, SDCM≤6 or 3, L80: 30K or 50K hours.

  • With the reliable driver, our LED flood lights meet international quality standards, such as CE UKCA GS ENEC CB SASO.

  • Quality is always our top priority. With 2KV-10KV surge protection, our LED flood lights are more secure.

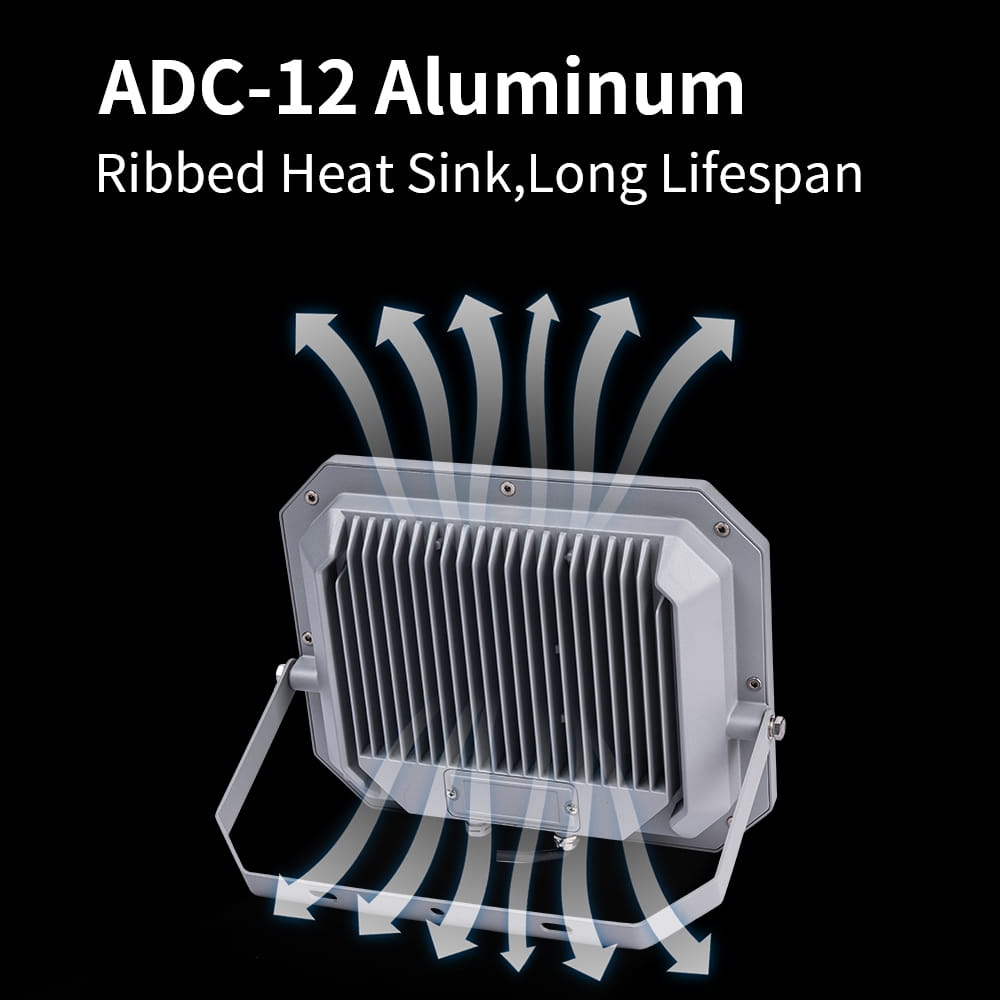

  • ADC-12 aluminum housing with ribbed back ensures good heat sink and longer lifespan.

  • 4mm thickness fully tempered glass,IK06,more secure than 3mm semi-tempered from other manufacturers.

  • 180° rotatable bracket for easy installation and beam adjustment.

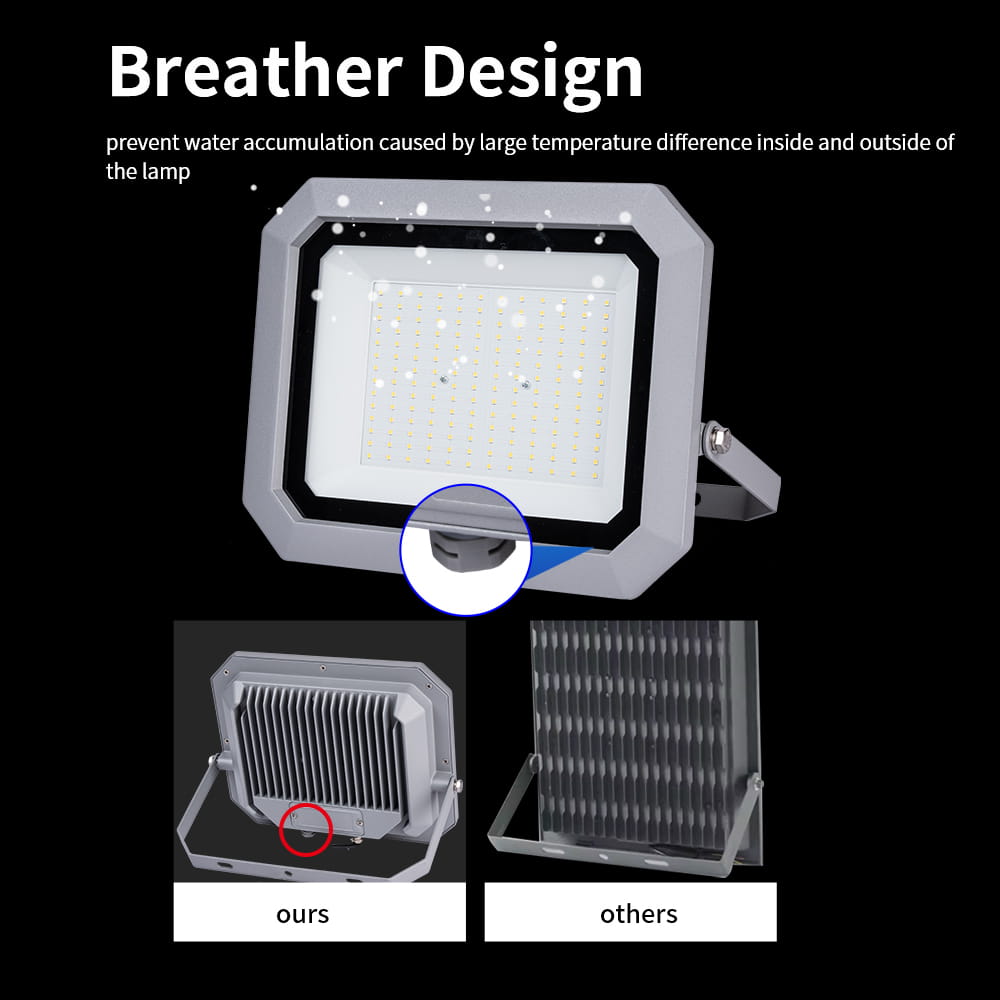

  • Breather design can prevent water accumulation caused by large temperature differences inside and outside of the lamp.

  • 100% aging test for each order.

  • No matter it is -40℃ or +65℃, our LED flood lights always work well.

Certificate

We supply flood light, solar light, and street lamp with patent design and reliable quality. The factory was founded in 2007 with over 10,000 square meters. Our team is consisted of over 200 staffs. The annual output exceeds 2 million pcs. Deeply involved in the lighting field for many years, we well understand the market demand and have superior R&D and innovation ability, and we can design customized products according to partner’s requirements.

  • 2007

    Founded in

  • 10,000+

    Company area

  • 200+

    Staff

  • 2,000,000+

    Annual output

Frequently Asked Questions

  • How Can I Get a Quote For The Lights?

    Get in touch with our customer service team to get a quote. They are available 24/7. Just be ready with your specifications like size, color temperature, wattages, etc. Give us your BOQ, and we’ll guide you through the rest of the process.

  • What is Your MOQ For The Order?

    Our MOQ is 500pcs for each item.

  • Can I Get a Sample Before Place The Order?

    Yes, we will provide you with a sample that you can physically evaluate. This will take 3 to 7 business days to complete. Custom orders may take longer.

  • What Is The Delivery Time of My Order?

    Our usual delivery time for LED flood lights is 25 to 35 days. The shipping period isn’t included, so consider that when setting your deadline expectations.

  • Can You Make Customized LED Flood Lights?

    Yes, we can customize LED Flood Lights for you. We need you to give us specific details like your design preference, power input, beam angles, wattage, etc. If you need further direction, our customer service can help you throughout the process.

  • What Is Your Warranty For Your LED Flood Lights?

    Quality is vital in everything that we do. This is why we are confident enough to provide our LED Flood Lights with a 3- or 5-year warranty. You can ensure that we only use high-quality materials and that every product is 100% tested before delivering to your specified location.
