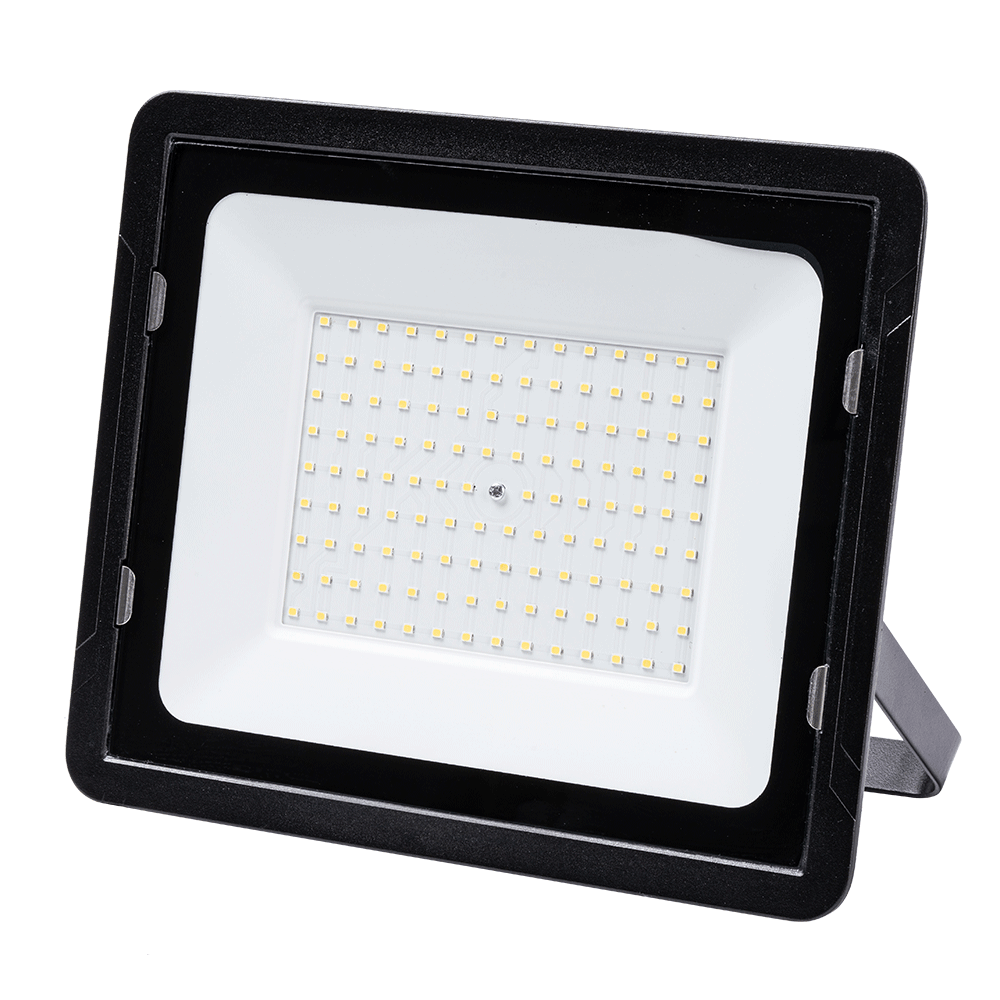

80 Series

LED Flood Lights

Features
  • Original unique design, heavy-duty and good price
  • Power range:10W-200W,70-120LM/W
  • Real watt,real lumen,professional factory in Ningbo
  • ADC-12 die-cast aluminum body,ribbed back,perfect heat dissipation,maintenance free
  • Streamline design, more beautiful appearance
  • With valve respirator from 50W to 500W
  • 4mm fully tempered safety glass
  • TOP brand LEDs and electronic components,reliable quality
  • Patent design:extra metal clips to fasten glass,more secure
  • Stainless steel screws
  • IP65 waterproof,anti-corrosion and anti-rust
  • IK06 impact,heavy-duty
  • 180° rotatable bracket for flexible beam angle
  • sensor/RGB optional,12V/24V and 36V optional
  • SGS CE RoHS certificated
  • MOQ:500pcs
  • Payment:T/T,L/C
  • Delivery time: 25-35 days
  • FOB port:Ningbo,China
GET A QUOTE

PRODUCT INTRODUCTION

Our 80 series LED floodlight is a high-quality lamp with high cost performance. It uses ADC-12 die-cast aluminum with excellent heat dissipation performance as the shell material, fully tempered glass, and international first-line brand LEDs and drivers. It can provide up to 50,000 hours of service life, while light decay is <20%. The ultra-thick shell makes it extremely durable and adaptable to various harsh scenarios. At the same time, it can also have rich customized functions, such as Sensor/RGB/CCT tunable /12V/24V /36V input. As an LED lighting manufacturer with more than 16 years of experience, Ningbo Mingxing Lighting Co., Ltd. can provide you with The best quality products and services, Please feel free to contact us.

Technical Parameters

Model No. Real Power LM Voltage
AC		 LED
Chip		 CCT PF CRI Beam
Angle		 IP
Grade		 Surge
Level		 Lifetime Prewired
Cable		 Product size
(mm)		 pcs/ctn Guarantee
(years)
8010 10W 1000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 35000Hrs H05RN-F 3*1.0mm² 15CM 94×76×25 60 3
8020 20W 2000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 35000Hrs H05RN-F 3*1.0mm² 15CM 113×96×26 60 3
8030 30W 3000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 35000Hrs H05RN-F 3*1.0mm² 15CM 148×126×48 30 3
8050 50W 5000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 35000Hrs H05RN-F 3*1.0mm² 15CM 183×156×29 20 3
8070 70W 7000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 35000Hrs H05RN-F 3*1.0mm² 15CM 220×187×32 10 3
8100 100W 10000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 35000Hrs H05RN-F 3*1.0mm² 15CM 260×220×35 8 3
8150 150W 15000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 35000Hrs H05RN-F 3*1.0mm² 15CM 300×251×39 6 3
8200 200W 20000 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 SMD2835 3000K-6500K ≥0.9 ≥80 120° 65 2KV-10KV 35000Hrs H05RN-F 3*1.0mm² 15CM 340×288×41 4 3

Product Details

  • Equipped with CREE/SAMSUNG/SAN AN LM-80 SMD LED,our LED flood lights can reach 85-160LM/W with CRI≥80 or 90,SDCM≤6 or 3,L80: 30K or 50K hours.

  • With the reliable driver, our LED flood lights meet international quality standards, such as CE UKCA GS ENEC CB SASO.

  • Quality is always our top priority. With 2KV-10KV surge protection,our LED flood lights are more secure.

  • ADC-12 aluminum housing with ribbed back ensures good heat sink and longer lifespan.

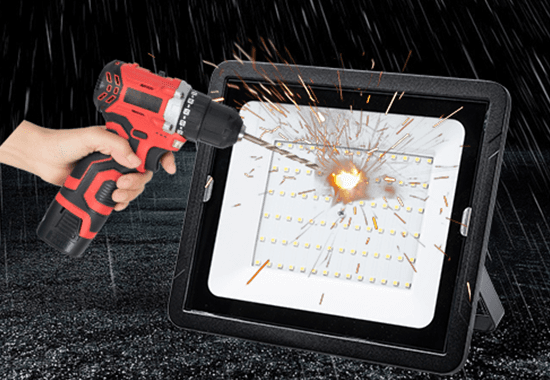

  • 4mm thickness fully tempered glass,IK06,more secure than 3mm semi-tempered from other manufacturers.

  • 180° rotatable bracket for easy installation and beam adjustment.

  • Breather design can prevent water accumulation caused by large temperature difference inside and outside of the lamp.

  • 100% aging test for each order.

  • No matter it is -40℃ or +65℃,our LED flood lights always work well.

Certificate

We supply flood light, solar light, and street lamp with patent design and reliable quality. The factory was founded in 2007 with over 10,000 square meters. Our team is consisted of over 200 staffs. The annual output exceeds 2 million pcs. Deeply involved in the lighting field for many years, we well understand the market demand and have superior R&D and innovation ability, and we can design customized products according to partner’s requirements.

  • 2007

    Founded in

  • 10,000+

    Company area

  • 200+

    Staff

  • 2,000,000+

    Annual output

Frequently Asked Questions

  • How Can I Get a Quote For The Lights?

    Get in touch with our customer service team to get a quote. They are available 24/7. Just be ready with your specifications like size, color temperature, wattages, etc. Give us your BOQ, and we’ll guide you through the rest of the process.

  • What is Your MOQ For The Order?

    Our MOQ is 500pcs for each item.

  • Can I Get a Sample Before Place The Order?

    Yes, we will provide you with a sample that you can physically evaluate. This will take 3 to 7 business days to complete. Custom orders may take longer.

  • What Is The Delivery Time of My Order?

    Our usual delivery time for LED flood lights is 25 to 35 days. The shipping period isn’t included, so consider that when setting your deadline expectations.

  • Can You Make Customized LED Flood Lights?

    Yes, we can customize LED Flood Lights for you. We need you to give us specific details like your design preference, power input, beam angles, wattage, etc. If you need further direction, our customer service can help you throughout the process.

  • What Is Your Warranty For Your LED Flood Lights?

    Quality is vital in everything that we do. This is why we are confident enough to provide our LED Flood Lights with a 3- or 5-year warranty. You can ensure that we only use high-quality materials and that every product is 100% tested before delivering to your specified location.
