FL-03 Series

LED Flood Lights

Features
  • New ultra-thin design, excellent price and performance
  • ADC-12 aluminum housing, ribbed back, perfect heat  dissipation, maintenance free
  • H05RN-F 3*1.0mm² 15CM prewired cable
  • TOP brand LEDs and electronic components, reliable quality
  • Fully tempered safety glass, IK06 impact
  • Stainless steel screws
  • Power range: 10W-200W,70-120LM/W
  • IP65 waterproof
  • Sensor/RGB/CCT tunable optional,12V/24V and 36V optional
  • 2KV-10KV surge protection.
  • SGS CE RoHS certificated
  • MOQ: 500pcs
  • Payment: T/T, L/C
  • Delivery time: 25-35 days
  • FOB port: Ningbo,China
  • Manufacturer: Ningbo Mingxing Lighting
GET A QUOTE

PRODUCT INTRODUCTION

The FL03 series LED floodlight is a cost-effective high-quality lamp. It uses ADC-12 die-cast aluminum with excellent heat dissipation performance as the shell material, fully tempered glass, and international first-line brand LED lamp beads and drivers. It can provide up to 50,000 Hours of service life, while light decay is <20%. The ultra-thin design of the casing, conforming European quality standards, make its price very competitive. At the same time, it can also have rich customized functions, such as Sensor/RGB/CCT tunable /12V/24V /36V input. As an LED lighting manufacturer with more than 16 years of experience, Ningbo Mingxing Lighting Co., Ltd. can provide you with The best quality products and services, Please feel free to contact us.

Technical Parameters

Ordering
Code		 Wattage Voltage LM/W Lumen PF Color Temperature CRI SDCM Beam Angle certificates driver Surge material Dimension Prewired cable MOQ Warranty
W V K ° mm
FL03-10W 10 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 70-100 900 0.9 3000K-6500K >80 ≤6 120° CE ROHS Linear DOB 2KV-10KV AL+safety glass 80x85x18 3*1.0mm²,15cm, VDE 1000pcs 2-3 years
FL03-20W 20 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 70-100 1800 0.9 3000K-6500K >80 ≤6 120° CE ROHS Linear DOB 2KV-10KV AL+safety glass 100x95x18 3*1.0mm²,15cm, VDE 1000pcs 2-3 years
FL03-30W 30 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 70-100 2700 0.9 3000K-6500K >80 ≤6 120° CE ROHS Linear DOB 2KV-10KV AL+safety glass 130x111x19 3*1.0mm²,15cm, VDE 1000pcs 2-3 years
FL03-50W 50 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 70-100 4500 0.9 3000K-6500K >80 ≤6 120° CE ROHS Linear DOB 2KV-10KV AL+safety glass 180x135x19 3*1.0mm²,15cm, VDE 1000pcs 2-3 years
FL03-70W 70 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 70-100 6300 0.9 3000K-6500K >80 ≤6 120° CE ROHS Linear DOB 2KV-10KV AL+safety glass 220x166x20 3*1.0mm²,15cm, VDE 1000pcs 2-3 years
FL03-100W 100 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 70-100 9000 0.9 3000K-6500K >80 ≤6 120° CE ROHS Linear DOB 2KV-10KV AL+safety glass 270x196x25 3*1.0mm²,15cm, VDE 1000pcs 2-3 years
FL03-150W 150 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 70-100 13500 0.9 3000K-6500K >80 ≤6 120° CE ROHS Linear DOB 2KV-10KV AL+safety glass 325x231x27 3*1.0mm²,15cm, VDE 1000pcs 2-3 years
FL03-200W 200 AC220-240V 50/60Hz
AC85-265V 50/60Hz		 70-100 18000 0.9 3000K-6500K >80 ≤6 120° CE ROHS Linear DOB 2KV-10KV AL+safety glass 380x266x29 3*1.0mm²,15cm, VDE 1000pcs 2-3 years

Product Details

  • Equipped with CREE/SAMSUNG/SAN AN LM-80 SMD LED,our LED flood lights can reach 85-160LM/W with CRI≥80 or 90,SDCM≤6 or 3,L80: 30K or 50K hours.

  • With the reliable driver, our LED flood lights meet international quality standards, such as CE UKCA GS ENEC CB SASO.

  • Quality is always our top priority. With 2KV-10KV surge protection,our LED flood lights are more secure.

  • ADC-12 aluminum housing with ribbed back ensures good heat sink and longer lifespan.

  • 4mm thickness fully tempered glass,IK06,more secure than 3mm semi-tempered from other manufacturers.

  • IP65 waterproof grade, excellent for outdoor using.

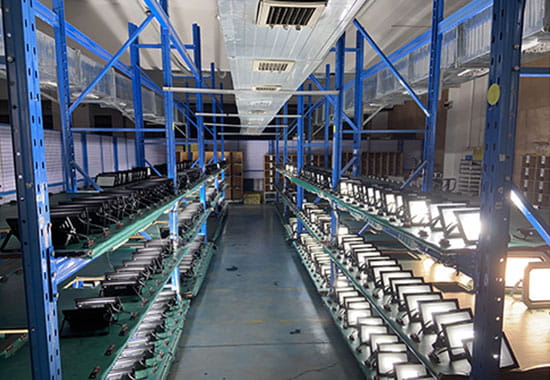

  • 100% aging test for each order.

  • No matter it is -40℃ or +65℃, our LED flood lights always work well.

  • Various usage, good performance, and long lifespan.

Certificate

We supply flood light, solar light, and street lamp with patent design and reliable quality. The factory was founded in 2007 with over 10,000 square meters. Our team is consisted of over 200 staffs. The annual output exceeds 2 million pcs. Deeply involved in the lighting field for many years, we well understand the market demand and have superior R&D and innovation ability, and we can design customized products according to partner’s requirements.

  • 2007

    Founded in

  • 10,000+

    Company area

  • 200+

    Staff

  • 2,000,000+

    Annual output

Frequently Asked Questions

  • How Can I Get a Quote For The Lights?

    Get in touch with our customer service team to get a quote. They are available 24/7. Just be ready with your specifications like size, color temperature, wattages, etc. Give us your BOQ, and we’ll guide you through the rest of the process.

  • What is Your MOQ For The Order?

    Our MOQ is 500pcs for each item.

  • Can I Get a Sample Before Place The Order?

    Yes, we will provide you with a sample that you can physically evaluate. This will take 3 to 7 business days to complete. Custom orders may take longer.

  • What Is The Delivery Time of My Order?

    Our usual delivery time for LED flood lights is 25 to 35 days. The shipping period isn’t included, so consider that when setting your deadline expectations.

  • Can You Make Customized LED Flood Lights?

    Yes, we can customize LED Flood Lights for you. We need you to give us specific details like your design preference, power input, beam angles, wattage, etc. If you need further direction, our customer service can help you throughout the process.

  • What Is Your Warranty For Your LED Flood Lights?

    Quality is vital in everything that we do. This is why we are confident enough to provide our LED Flood Lights with a 3- or 5-year warranty. You can ensure that we only use high-quality materials and that every product is 100% tested before delivering to your specified location.

GET IN TOUCH

If you have any questions about MINGXING and products or services, feel free to contact our service team. Use our contact form on our contact details page or call us to discuss this product further.
